Aluminum Perforated Panel
Deerway supplies aluminum metals processed in three major forms: embossed, chequered, punched (perforated) . In this page, we mainly introduce perforated aluminum panels.
The aluminum perforated sheet metals have less weight compared with stainless steel and the same excellent corrosion resistance. Decorative hole perforated aluminum are mainly used in manufacture of security screen doors and partitions, ceiling and wall panels and other uses.
Hole Type: Slotted, Long hole, Square hole, Round hole, Triangle hole, Hexagonal hole, Diamond and Decorative.
Perforated Opening Styles Illustration for Aluminum Sheet Metal
 |
 |
| Triangle Hole Perforated Aluminum Sheet | Diamond Opening Aluminum Panels |
 |
|
| Hexagonal Opening Perforated Metal Mesh |
Round Hole Punched Metal Screen Partition
Aluminum Decorative Wall Cladding Panels with Ornamental Punched Patterns
Perforated Square Hole, Round Hole and Slot Hole for Aluminum Sheets:
| Round hole | Plate thickness 0.4 – 6.0mm hole size: 1.0-25mm center to center distance:3-34mm opening rate:23%-49% |
| Square holes | Plate thickness 0.8-3.0mm hole size: 3.0-50.0mm center to center distance:5.0-100.0mm opening rate:16%-64% |
| Shot holes round ends | Plate thickness 0.5 – 3.0mm hole size: 1.0*1.0mm – 10*45mm center to center distance:4.0*6.0 – 20*60mm opening rate:18%-76% |
| Slot holes | Plate thickness 0.5 – 3.0mm hole size: 1.0*10mm – 10*45mm center to center distance: 7.0*1.4 – 20*60mm opening rate:18%-76% |

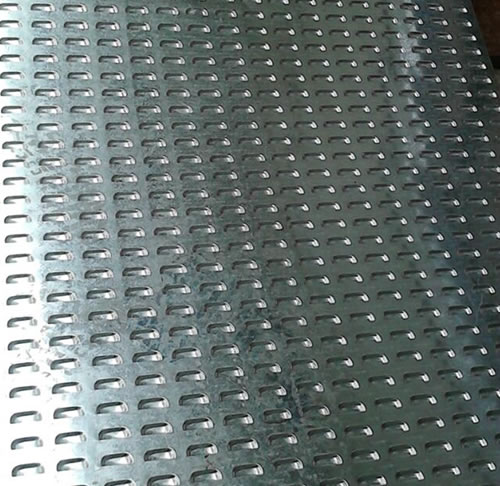

Slotted Aluminum Metal Sheet
Perforated Aluminum Standard Specifications, with Hole Diameter, Staggered Center Distances, Sheet Thickness and Opening Areas:
Hole Diameter |
Staggered Centers |
Sheet Thickness |
Open Area |
||
0.045" |
1.14mm |
0.066« |
0.033-0.039" |
0.84-0.99mm |
37.00% |
1/16" |
1.59mm |
3/32" |
0.027-0.033" |
0.68-0.84mm |
41.00% |
1/16" |
1.59mm |
1/8" |
0.027-0.066" |
0.68-1.68mm |
23.00% |
5/64" |
1.98mm |
1/8" |
0.027-0.053" |
0.68-1.35mm |
35.00% |
0.081" |
2.06mm |
1/8" |
0.053-0.066" |
1.35-1.68mm |
38.00% |
3/32" |
2.38mm |
5/32" |
0.053-0.066" |
1.35-1.68mm |
33.00% |
1/8" |
3.17mm |
3/16" |
0.027-0.127" |
0.68-3.23mm |
40.00% |
5/32" |
3.97mm |
3/16" |
0.027-0.066" |
0.68-1.68mm |
63.00% |
3/16" |
4.76mm |
¼" |
0.027-0.127" |
0.68-3.23mm |
50.00% |
1/4" |
6.35mm |
3/8" |
0.033-0.111", 0.25" |
0.84-2.82mm, 6.35mm |
40.00% |
3/8" |
9.52mm |
½" |
0.053-0.082", 3/16" |
1.35-2.08mm, 4.76mm |
51.00% |
3/8" |
9.52mm |
9/16" |
0.059", 0.119" |
1.50mm, 3.02mm |
40.00% |
1/2" |
12.70mm |
11/16" |
0.033-0.127", 3/16" |
0.84-3.23mm, 4.76mm |
48.00% |
1/4" Hex |
6.35mm Hex |
0.285 |
0.027-0.033 |
0.68-0.84mm |
76.00% |
3/8" Sq. |
9.52mm Sq. |
Cane« |
0.053-0.066" |
1.35-1.68mm |
51.00% |
Popular Punched Aluminum Sheet Panels Sizes Examples:
Aluminum Sheet Size 1220MM × 2440MM Thickness : 25MM
Aluminum Sheet Size 1220MM × 2440MM Thickness : 40MM
Aluminum Sheet Size 1220MM × 2440MM Thickness 1.1MM
Perforated Aluminum 1220MM × 1200MM Thickness 1.2MM
Aluminum Perforated Panels 1220MM × 1220MM Thickness 2MM
Aluminum Panel Size 3650MM × 2440MM Thickness 2.5MM
Aluminium Slotted Metal Panel Size 1220MM × 2440MM Thickness 5MM
